K5CM FMT
July 11 RESULTS
(9:30 PM CDT)
(10:00 PM CDT West coast run)
K5CM TX FREQUENCY :
40 Meters - 7056159.58 Hz (cw call up - 5 minutes)
40 Meters - 7056161.28 Hz (Short - 15 seconds)
40 Meters - 7056166.77 Hz (Long - 5 minutes)
W6OQI TX FREQUENCY:
80 Meters - 3565000.218 Hz (cw call up)
80 Meters - 3565001.054 Hz (Short)
80 Meters - 3565002.154 Hz (Long)
------------------------------------------------------------------------------------
Sort by best 40 meter "long key down" reading
CW Short Long
| VE2ZAZ | QC | - | | | 7056161.380 | 0.100 | 1.42E-08 | | | 7056166.78 | 0.010 | 1.42E-09 | ||||||
| K6APW | CA | - | 7056158.7 | -0.880 | 1.25E-07 | | | 7056160.300 | -0.980 | 1.39E-07 | | | 7056166.8 | 0.030 | 4.25E-09 | |||
| W5UFZ | AZ | - | | | 7056160.770 | -0.510 | 7.23E-08 | | | 7056166.731 | -0.039 | 5.53E-09 | ||||||
| K6YAZ | CA | - | 7056160.1 | 0.520 | 7.37E-08 | | | 0.000 | | | 7056166.7 | -0.070 | 9.92E-09 | |||||
| KD2BD | NJ | - | 7056159.125 | -0.455 | 6.45E-08 | | | 7056161.750 | 0.470 | 6.66E-08 | | | 7056166.658 | -0.112 | 1.59E-08 | |||
| W3CSW | MD | - | 7056159.449 | -0.131 | 1.86E-08 | | | 7056161.205 | -0.075 | 1.06E-08 | | | 7056166.64 | -0.130 | 1.84E-08 | |||
| W6OQI | CA | - | 7056159.18 | -0.400 | 5.67E-08 | | | 7056161.020 | -0.260 | 3.68E-08 | | | 7056166.6 | -0.170 | 2.41E-08 | |||
| K6OQK | CA | - | 7056159.31 | -0.270 | 3.83E-08 | | | 7056161.060 | -0.220 | 3.12E-08 | | | 7056166.59 | -0.180 | 2.55E-08 | |||
| VE3OAT | ON | - | 7056159.68 | 0.100 | 1.42E-08 | | | 0.000 | | | 7056166.97 | 0.200 | 2.83E-08 | |||||
| N8OB | OH | - | 7056159.4 | -0.180 | 2.55E-08 | | | 7056162.000 | 0.720 | 1.02E-07 | | | 7056167 | 0.230 | 3.26E-08 | |||
| W0PHD | MN | - | 7056160.273 | 0.693 | 9.82E-08 | | | 7056167.997 | 6.717 | 9.52E-07 | | | 7056167 | 0.230 | 3.26E-08 | |||
| W3JW | VA | - | 7056159.94 | 0.360 | 5.10E-08 | | | 7056160.990 | -0.290 | 4.11E-08 | | | 7056166.51 | -0.260 | 3.68E-08 | |||
| WB0UIR | AZ | - | 7056159.374 | -0.206 | 2.92E-08 | | | 0.000 | | | 7056166.489 | -0.281 | 3.98E-08 | |||||
| WBOLXZ | KS | - | 7056160.711 | 1.131 | 1.60E-07 | | | 7056161.417 | 0.137 | 1.94E-08 | | | 7056166.251 | -0.519 | 7.36E-08 | |||
| AA4RP | GA | - | 7056158.893 | -0.687 | 9.74E-08 | | | 7056160.303 | -0.977 | 1.38E-07 | | | 7056165.84 | -0.930 | 1.32E-07 | |||
| KC0VSJ | MO | - | | | | | ||||||||||||
| N5PWG | TX | - | | | | |
Sort by best West Coast 80 meter "long key down" reading
CW Short Long
| W3JW | VA | - | 3565001.17 | 0.952 | 2.67E-07 | | | 3565001.92 | 0.866 | 2.43E-07 | | | 3565002.17 | 0.016 | 4.49E-09 | |||
| K6OQK | CA | - | 3565000.23 | 0.012 | 3.37E-09 | | | 0 | | | 3565002.135 | -0.019 | 5.33E-09 | |||||
| K6YAZ | CA | - | 0 | | | 0 | | | 3565002.1 | -0.054 | 1.51E-08 | |||||||
| W5UFZ | AZ | - | 3564999.62 | -0.598 | 1.68E-07 | | | 3565000.941 | -0.113 | 3.17E-08 | | | 3565001.993 | -0.161 | 4.52E-08 | |||
| K5CM | OK | - | 3565000 | -0.218 | 6.12E-08 | | | 3565000.609 | -0.445 | 1.25E-07 | | | 3565001.955 | -0.199 | 5.58E-08 | |||
| AA4RP | GA | - | 3564998.922 | -1.296 | 3.64E-07 | | | 3565000.252 | -0.802 | 2.25E-07 | | | 3565001.937 | -0.217 | 6.09E-08 | |||
| VE2ZAZ | QC | - | 0 | | | 0 | | | 3565001.86 | -0.294 | 8.25E-08 | |||||||
| K6APW | CA | - | 3565000.5 | 0.282 | 7.91E-08 | | | 3565005.9 | 4.846 | 1.36E-06 | | | 3565002.5 | 0.346 | 9.71E-08 | |||
| N5PWG | TX | - | 3565000.49 | 0.272 | 7.63E-08 | | | 0 | | | 3565002.53 | 0.376 | 1.05E-07 | |||||
| WB0UIR | AZ | - | 3564999.558 | -0.660 | 1.85E-07 | | | 0 | | | 3565001.747 | -0.407 | 1.14E-07 | |||||
| VE3OAT | ON | - | 3565000.04 | -0.178 | 4.99E-08 | | | 3565001.05 | -0.004 | 1.12E-09 | | | 3565002.57 | 0.416 | 1.17E-07 | |||
| WBOLXZ | KS | - | 3564999.858 | -0.360 | 1.01E-07 | | | 3565000.354 | -0.700 | 1.96E-07 | | | 3565001.714 | -0.440 | 1.23E-07 | |||
| W0PHD | MN | - | | | | |
| VE2ZAZ | QC | |||||||||||||||
| K6APW | CA | Thanks! What a really tough test with an unaided 10 Hz resolution transceiver. K5CM S5 to S8 W6OQI S9+ to S6. | ||||||||||||||
| W5UFZ | AZ | |||||||||||||||
| K6YAZ | CA | Connie; thanks for another interesting evening; too bad that I was tired! Hope this isn't too late- I just got home. Good copy on forty- reasonable stable. | ||||||||||||||
| KD2BD | NJ | Very good signals were received during the FMT period. During the "key down" period- your on-air frequency was determined by measuring the frequency of my receiver's L.O. while it was phased locked to yourtransmitted carrier minus exactly 1000 Hz. During the CW periods- I plotted received audio against a 1000 Hz standard on an oscilloscope- and fine tuned the L.O. using hand capacitance to produce a stationary display on the scope while recording frequency readings on paper. Quite a challenging exercise! | ||||||||||||||
| W3CSW | MD | Good signals in a fairly quiet band - No West Coast signals heard ... | ||||||||||||||
| W6OQI | CA | This three frequency format certainly is more challenging but fun to do. I will think it was even more fun if I am close. There were some intervals during your long transmission when Doppler was not too bad. | ||||||||||||||
| K6OQK | CA | Connie your signal was very stable tonight. I had a sneezing fit and missed Marv's 15 second key down run. This was a fun change of pace. | ||||||||||||||
| VE3OAT | ON | Rats! I made some sort of reading mistake on your first (short) key-down transmission so no result there. W6OQI was "weak but readable". Thanks for the FMT Connie. | ||||||||||||||
| N8OB | OH | Another try from this neck of the woods. Very nice signal this evening. | ||||||||||||||
| W0PHD | MN | |||||||||||||||
| W3JW | VA | Local thunderstorms were producing static bursts well over S9. Doppler effects were significant on all test signals. Most results were obtained with SpecLab. Was able to make counter measurements on the 40 meter long carrier test. This format is definitely more difficult than the previous one. | ||||||||||||||
| WB0UIR | AZ | Hank says Same old National receiver and HP counter. | ||||||||||||||
| WBOLXZ | KS | Connie- you are right “fun but challenging.” Thanks | ||||||||||||||
| AA4RP | GA | K5CM - GOOD SIGNAL S9 + 20 db W6OQI - WEAK QSB HEAVY QRN. | ||||||||||||||
| KC0VSJ | MO | Tom says, My first real participation - boy do I have to get organized | ||||||||||||||
| N5PWG | TX | Jay says, 40m signal fairly strong but variable in frequency, I think…. 80m signal very weak but more constant than the 40m…. 73, I appreciate your help; it's a lot of fun | ||||||||||||||

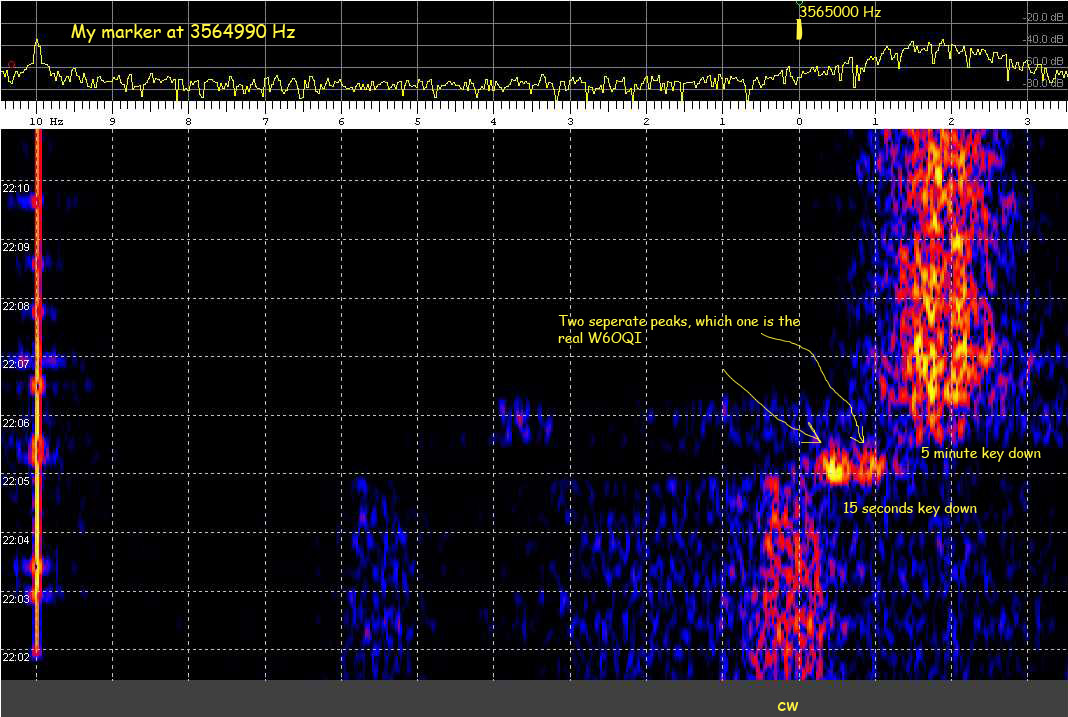

SL capture of W6OQI by K5CM. Considerable static Doppler was noted on Marvin's 80 meter signal here in Oklahoma. Marvin started the cw call up on 3565000.218 Hz then moved up to 3565001.054 Hz for 15 seconds, then finished the run by moving up to 3565002.154 Hz for 5 minutes.
Congrats to WB0LXZ, K6APW, AA4RP, and W3JW for getting all six readings to better than 1.3Hz.
Honor Roll: (.1 Hz or better on two bands or more)
K6YAZ, VE3OAT
Stations copying K5CM run to .1Hz or better.
VE2ZAZ, K6APW, W5UFZ, K6YAZ, W3CSW, VE3OAT
Stations copying W6OQI "West coast run" to .1Hz or better.
W3JW, K6OQK, K6YAZ, VE3OAT
Transmitting equipment used by K5CM for this FMT:
A HP-Z3801 GPS clocks a HP-3336B. A small 10 db transistor amp follows and drives a 12BY7 / pair 6146 in a TS-830. Then to a Drake L4B at 300 watts output except on 30 meters where the power is 75 watts.
Antennas:
80 - Cage Dipole (favors East, West, and North)
40 - Dipole (favors East, West)
30 - Dipole (favors East, North, West)
20, 17 - 4 element SteppIR in Bi Direction Mode (East/West)
Current W6OQI FMT transmitting equipment:
My transmitting setup consists of a HP Z3801 clocking a HP 3336B which drives a Johnson Viking I transmitter, the output of which is attenuated by a 6 dB attenuator, to then drive an Icom PW-1 amplifier to about 500 Watts. The antenna is an inverted Vee which favors north and south from the Los Angeles area.
Note: Because I put the results up quickly, there will be mistakes, so don't hesitate to point them out quickly.
Thanks to all that participated.
Connie
K5CM
